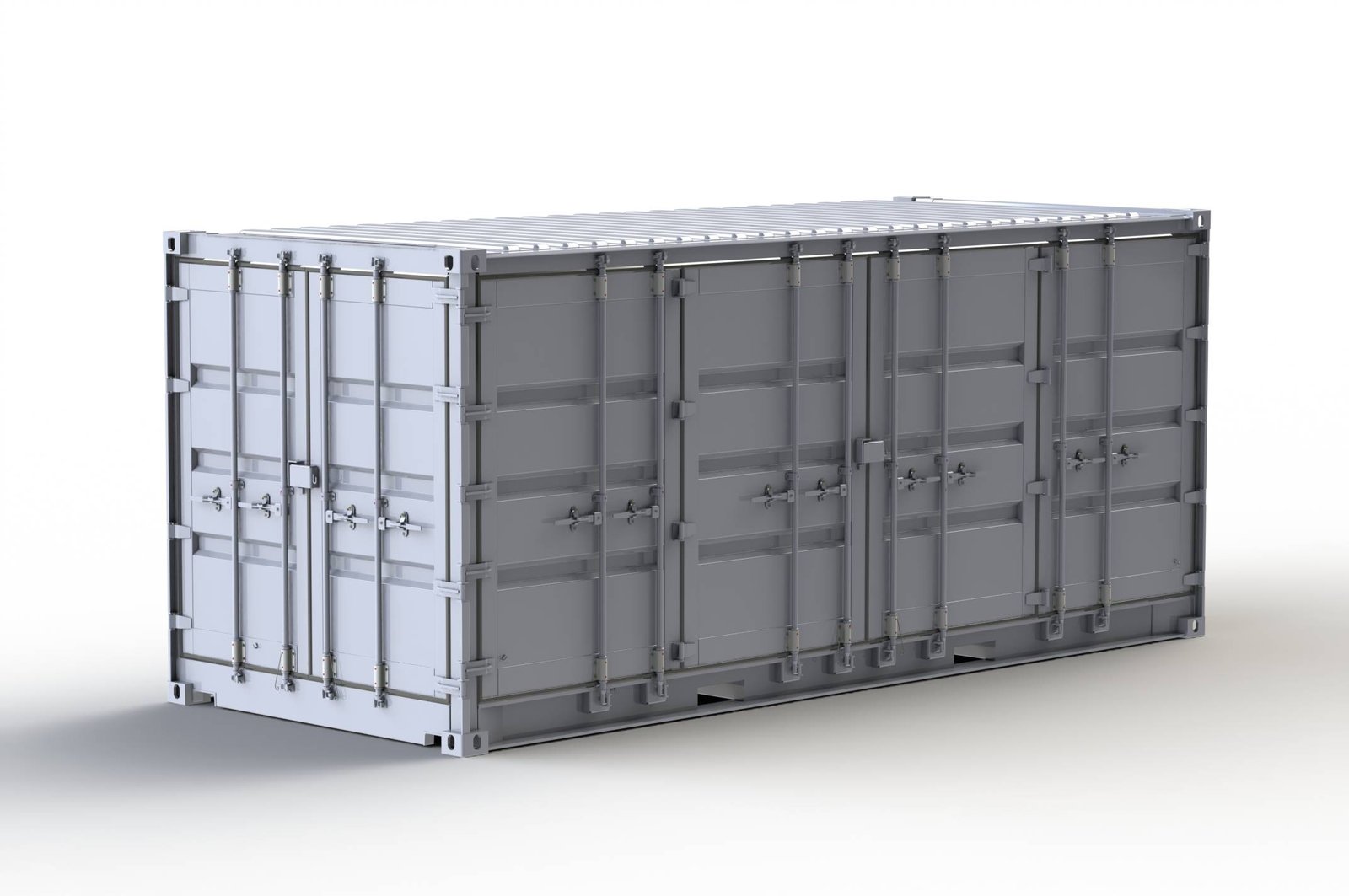

20′ Ammunition Container

This container is designed for temperature-sensitive storage, providing a secure and climate-stable environment for cargo. Ideal for NATO operations, industrial use, or customized storage solutions, it can be modified to meet specific operational needs.

📐 Dimensions

• External dimensions: Length 6,058 mm × Width 2,438 mm × Height 2,591 mm

• Internal dimensions: Length 5,428 mm × Width 2,241 mm × Height 2,168 mm

• Door opening (end): Height 2,191 mm × Width 2,227 mm

• Side door opening width: 5,446 mm

• Forklift pocket center distance: 2,080 mm

• Cubic capacity: 26.3 m³

🧱 Construction & Insulation

• Double doors at one end and fully openable 6 m side wall doors

• Climate control unit with circular airflow system for stable temperature

• Sidewalls, ceiling, and doors: 60 mm PIR panels (aluminum on one side, stainless steel cover on the other)

• Underfloor insulation: 120 mm mineral wool with steel plate

• Floor: Wooden floor with lashing rings, groove-free for airflow over pallets

• Reefer seals on doors prevent heat leakage

⚙️ Equipment & Features

• Climate control unit

• Electricity installation

• Forklift pockets

• Fully insulated with high-quality materials

• Customizable electric distribution box and strap storage

• LED lighting integrated between PIR panels and roof panels

📏 Standards & Quality

• Frame: ISO 668, 830, 1161, 1496-1, 3874, 6346. CSC, CCC

• Painting: All RAL codes, categories 1-5 (ISO12944)

• Quality: ISO 9001 (QMS), 9606-1&2 (welding)

⚖️ Weight & Load Capacity

• Floor test load: 2,000 kg

• Racking test load: 150 kN

• Tare weight: 4,200 kg (±2%)

• Maximum gross weight: 16,000 kg
