20ft Full side access Container, STANAG Frame

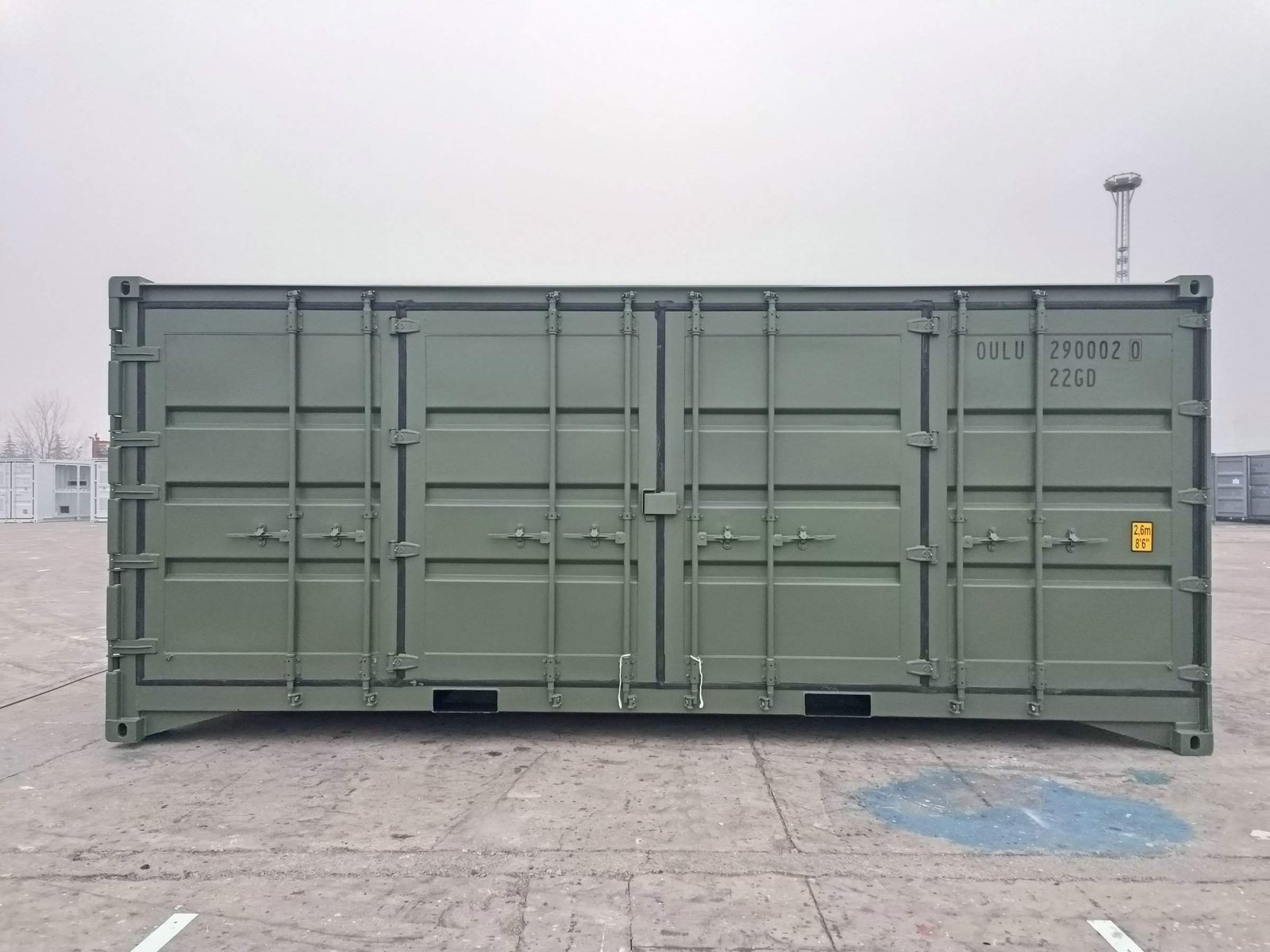

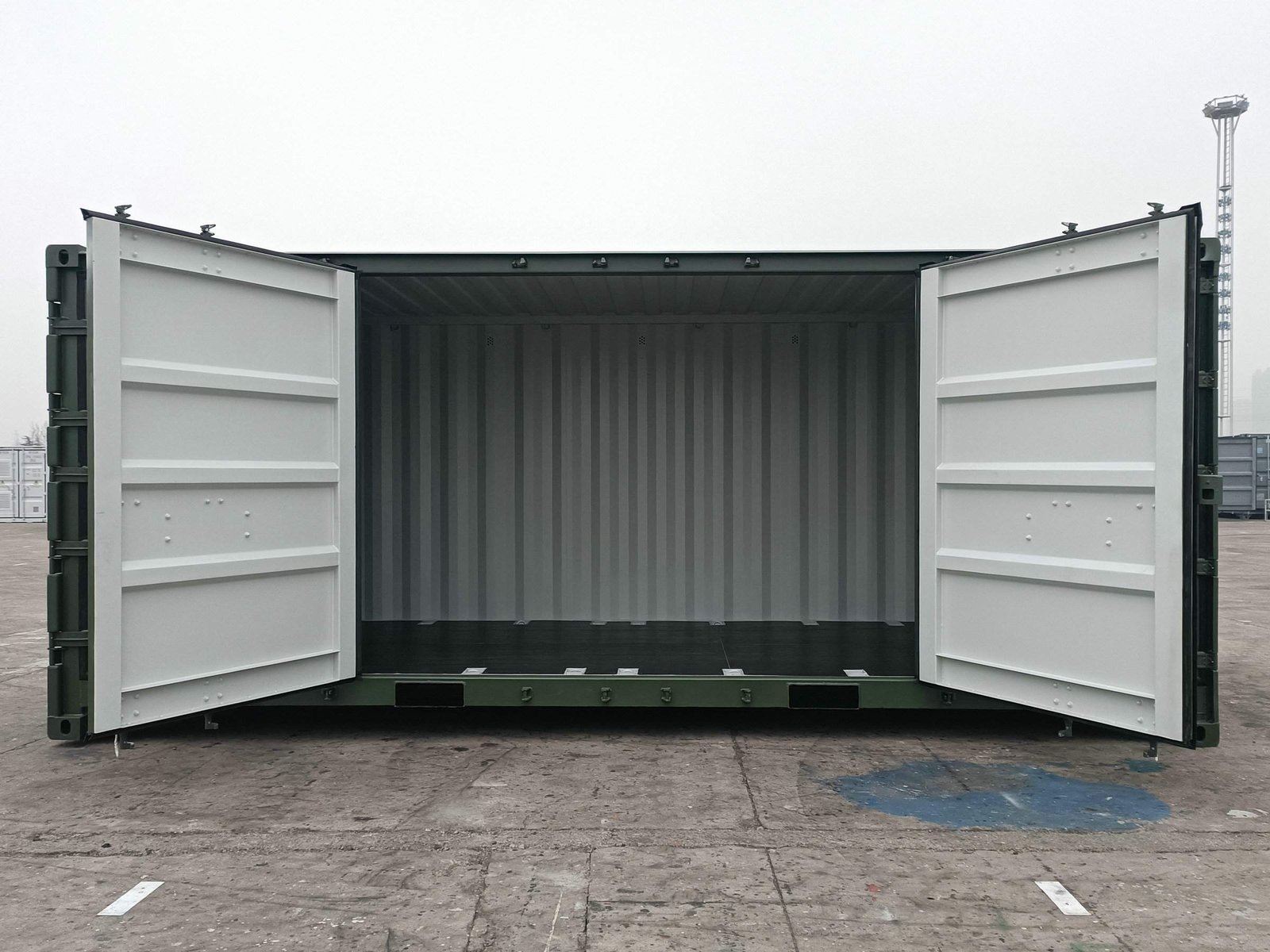

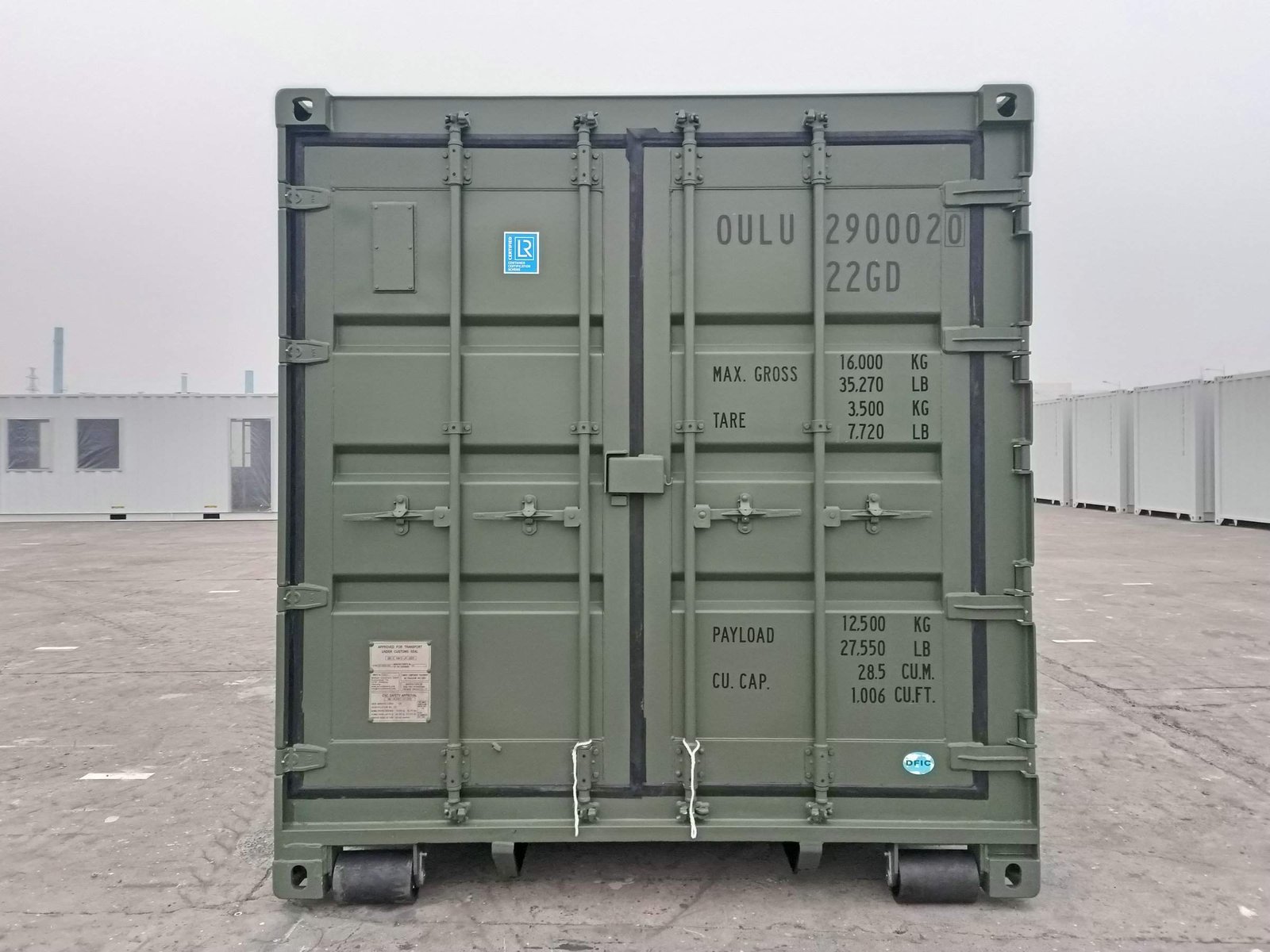

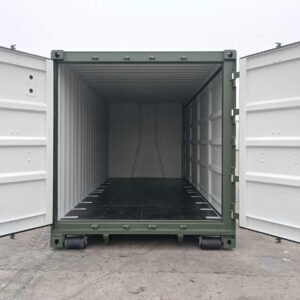

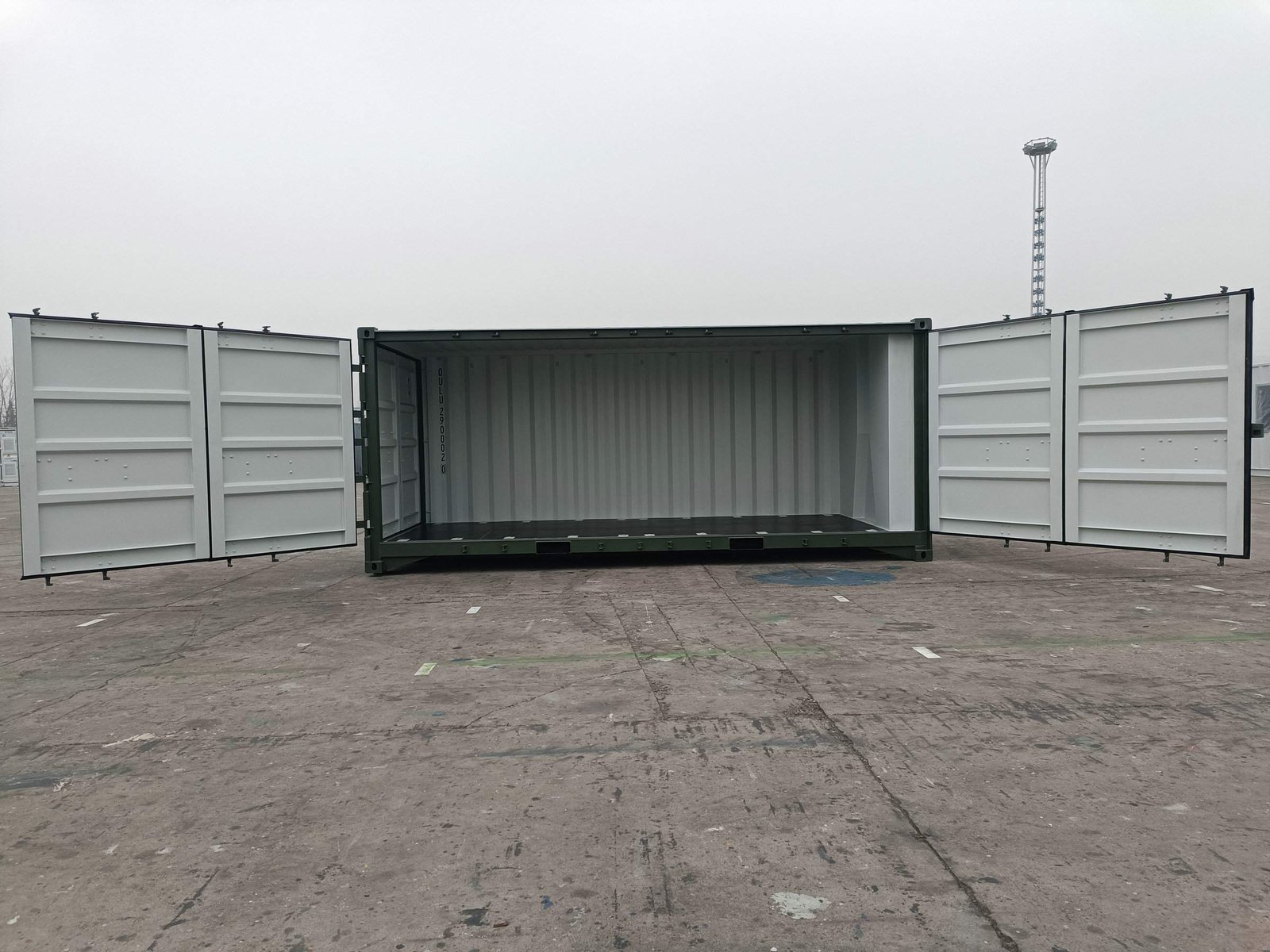

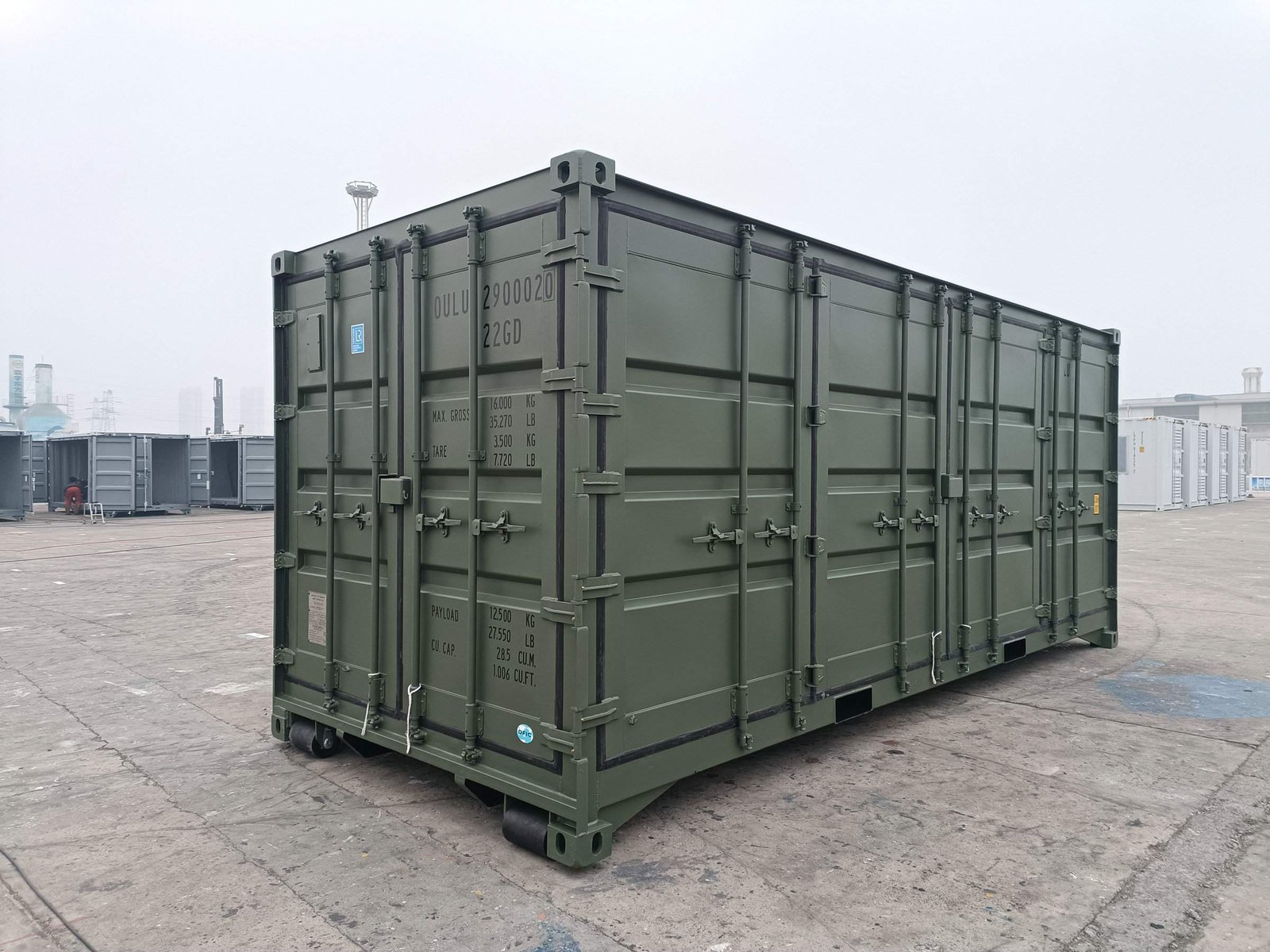

This 20′ container features double doors at one end and a fully openable long wall (6 m) for flexible loading and access. The container is designed for durability and versatility, with multiple floor options and standard factory features that ensure long-term reliability.

📐 Dimensions and capacity

• Outer dimensions: Length: 6,058 mm × Width: 2,438 mm × Height: 2,591 mm

• Inner dimensions: Length: 5,685 mm × Width: 2,288 mm × Height: 2,245 mm

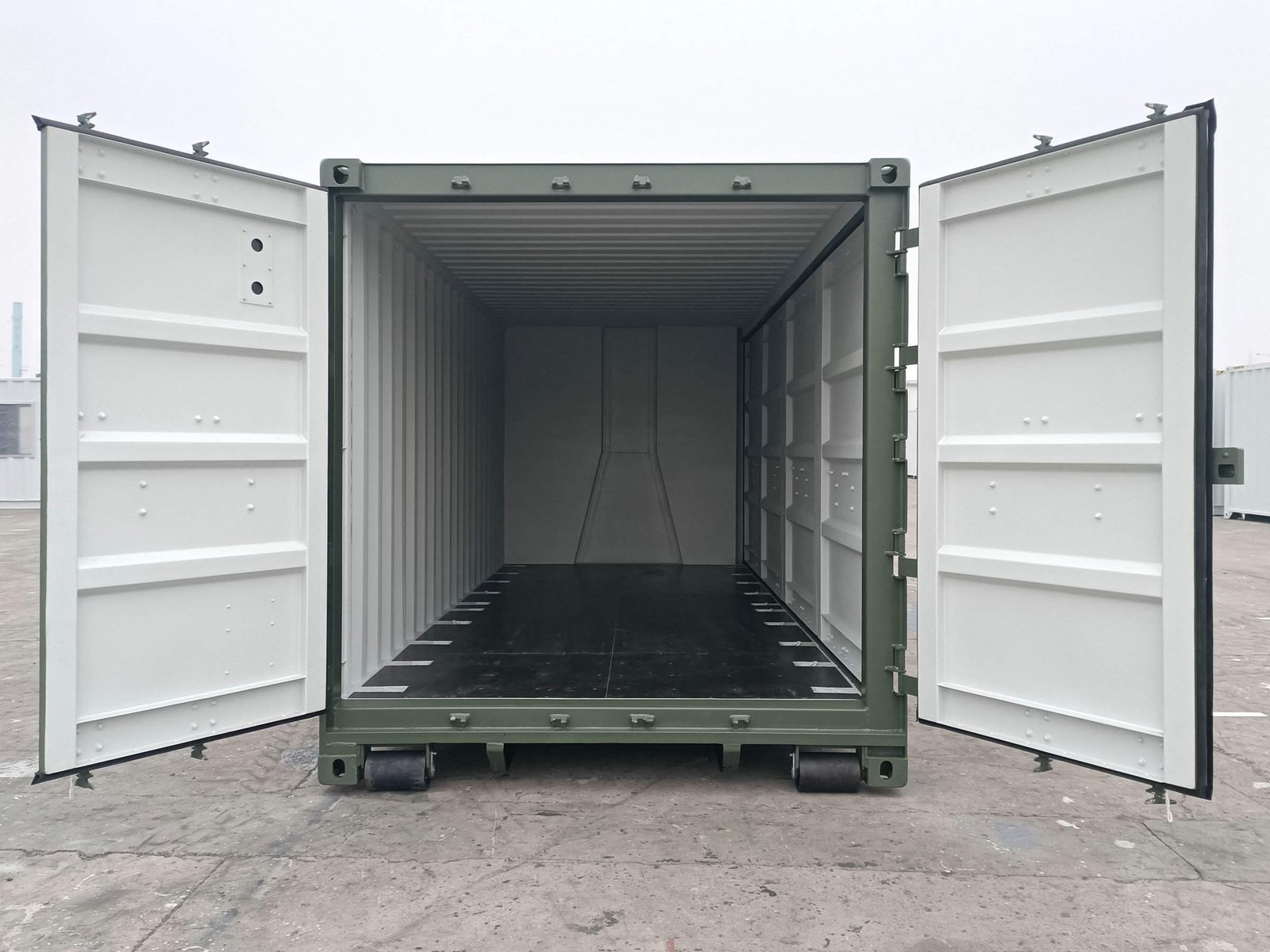

• Door opening (end): Height: 2,127 mm × Width: 2,227 mm

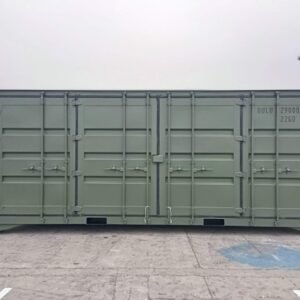

• Side door opening: Height: 2,127 mm × Width: 5,847 mm

• Cubic capacity: 30 m³

🧱 Construction and materials

• ISO standards: 668, 830, 1161, 1496-1, 3874, 6346; CSC, CCC

• Container frame built to withstand stacking and transport

• Factory standards: ISO 9001 (QMS), 9606-1 & 2 welding

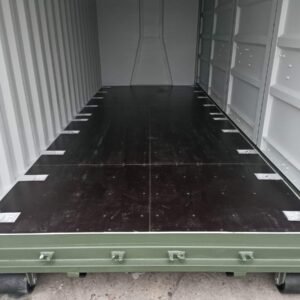

• Floor options: Bamboo, Plywood, Steel

• Paint: All RAL codes, categories 1–5 (ISO 12944)

• Lashing rings: 20 pcs, rated 1,500 KG each

• Grease nubs on all hinges for durability

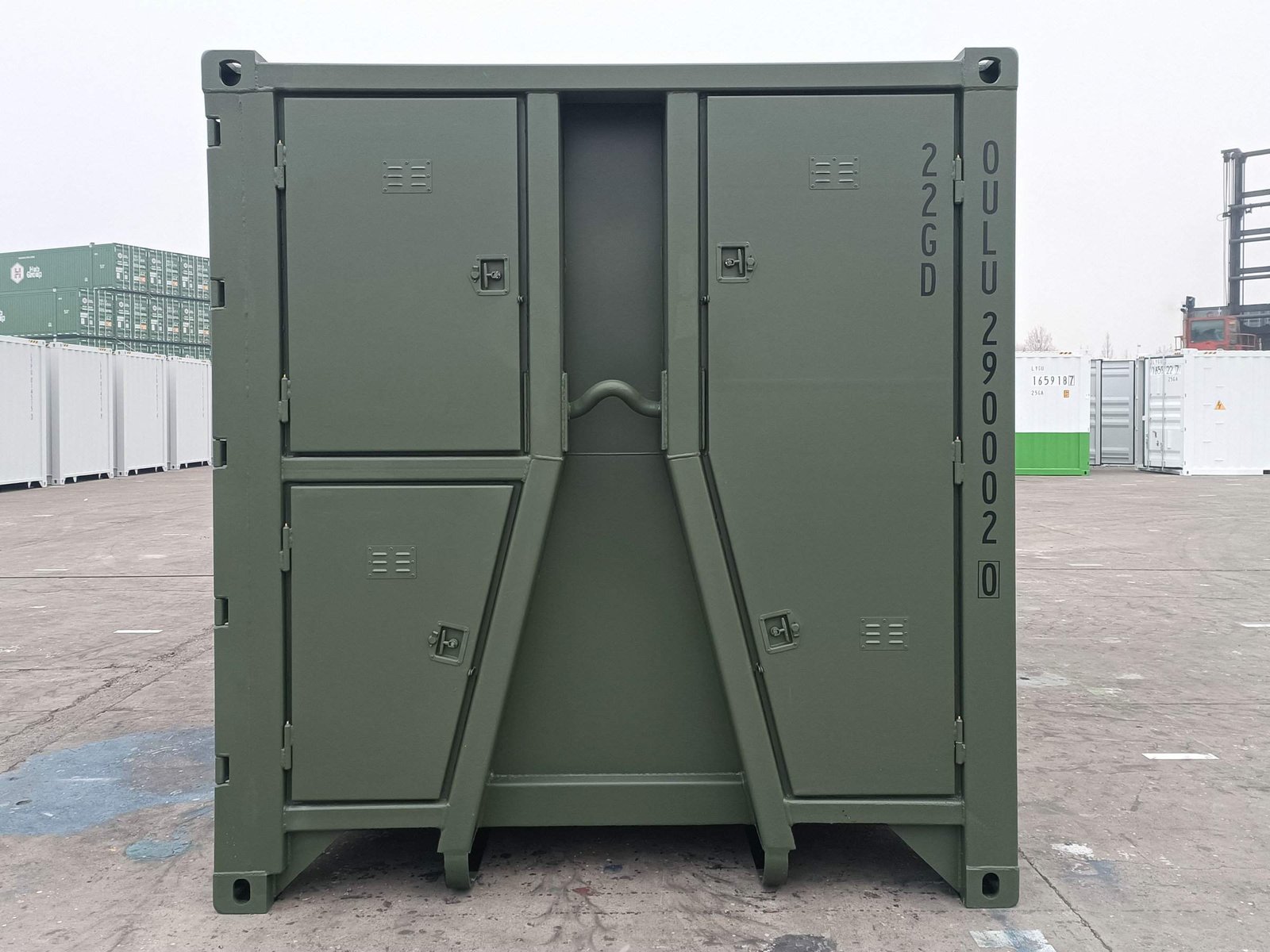

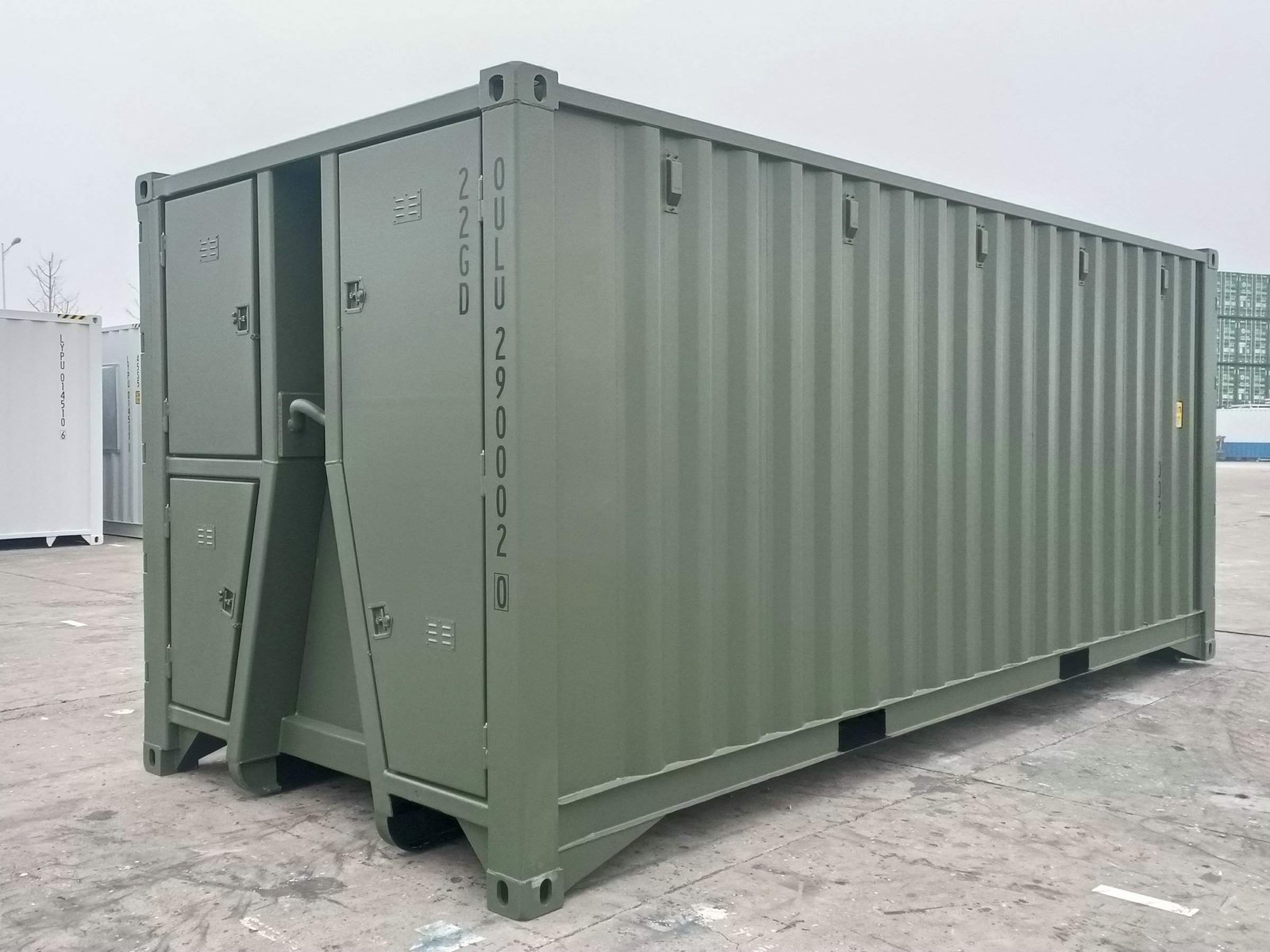

• Optional closable equipment boxes and cutouts

⚖️ Weight and load capacity

• Maximum gross weight: 16,000 KG

• Tare weight: 3,250 KG

• Payload: 12,750 KG

• Stacking capacity/post: 97,200 KG

• Racking test load: 150 KN

• Floor test load: 7,260 KG

✅ Advantages

• Flexible side-loading design for machinery or oversized cargo

• Durable construction suitable for transport and storage

• Multiple floor options for different applications

• Standardized ISO, CSC, and factory quality certifications
